Description
Root ZX3 - Advanced, New Approach for Canal Treatment
Apex Locator
Unit Includes: Probe Cord, File Holders (3), Contrary Electrodes (5),
"AA" Alkaline Batteries (4)
Root ZX3 HF Module
Unit Includes: Wide Contrary Electrodes (3), Foot Switch, Grip, Grip Cap, HF Probe Cord
HF Relay Cord, AC Adapter, Battery Pack, HF Tip Holder, HF File Holders (3),
HF Endo Tip Electrode K#10 (2), HF File Electrode K#10L25 (2)
HF Cutting Tip No. 1 Electrode
Quantity 3-9 Units
Highlights:
Apex Locator with High-Frequency (HF) Module

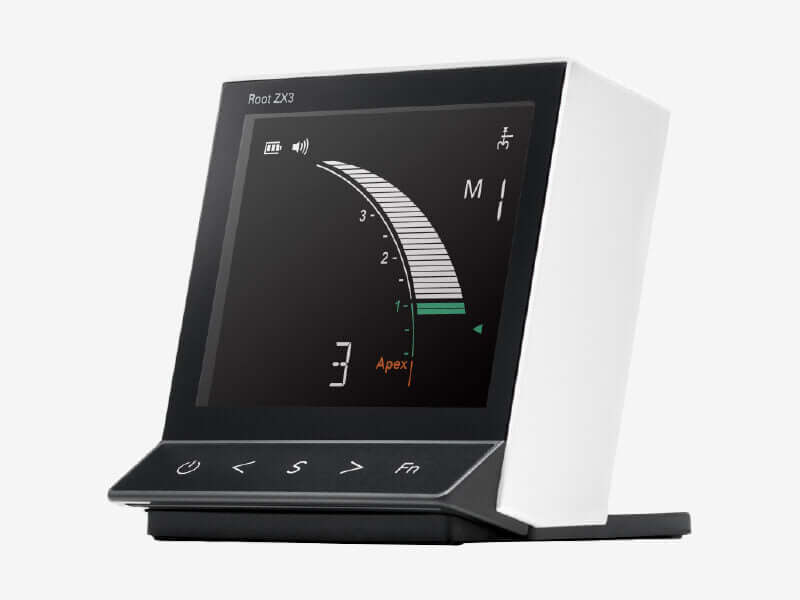

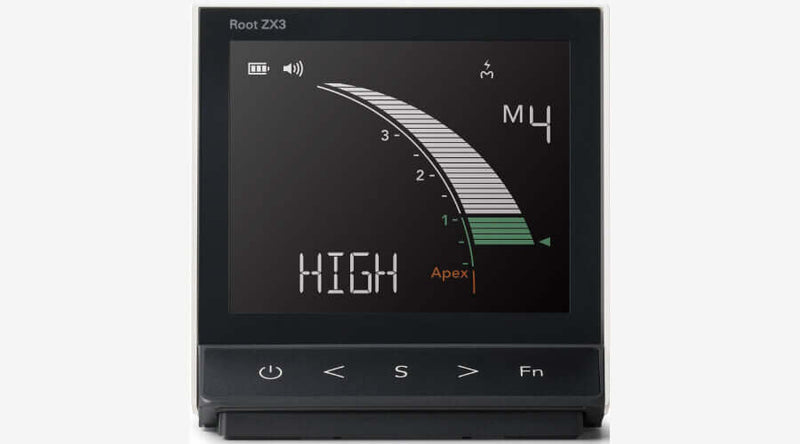

Root ZX3 is the latest generation of Morita's world-renowned apex locator product line. Housed in a brand new, sleek design, it offers an overall smaller footprint, yet a larger, high-contrast display screen. It utilizes Morita's industry-leading apex location technology with real-time readings smoothly displayed by 40 indicator bars.

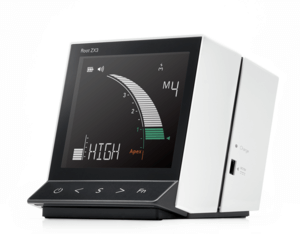

As an optional attachment, the new HF Module snaps easily onto the back of the apex locator. By introducing high-frequency conduction (HFC) therapy, this module offers a new treatment approach for root canal shaping and cleaning methods. Applications and benefits include:
Cauterization of pulp in initial treatment
Cauterization of pulp in retreatment of challenging cases that could not be addressed solely by conventional methods
HFC's superior hemostatic affect contributes to enhanced apex location precision
Discover a new world of root canal treatment with Root ZX3.
Features:
Utilizes Morita's industry-leading, reliable apex location technology, which has been independently evaluated at a 97.5% accuracy rate*
Full functionality in dry or wet canals
Automatic calibration to compensate for changes in environment (temperature, humidity, etc.) and aging
High accuracy that lasts decades
* Tested with Root ZX II.
Guise, G. M., Goodell, G. G., & Imamura, G. M. (2010). In Vitro Comparison of Three Electronic Apex Locators. Journal of Endodontics, 36(2), 279-281.
| |
Apex Locator Module |
HF Module |
| |
 |

|
| Name |
Root ZX3 |
|
| Model |
RZX3 |
|
| Type |
Apex Locator Module |
HF Module |
| Dimensions |
Length x Width x Height (Approx.)
3.35" x 3.74" x 3.94"
85mm x 95mm x 100mm
|
Length x Width x Height (Approx.)
4.13" x 3.74" x 3.54"
105mm x 95mm x 90mm
|
|
Length x Width x Height (Approx.)
4.33" x 3.74" x 3.94" | 110mm x 95mm x 100mm
(Apex Locator + HF Module)
|
| Weight |
Approx. 390 g/13.8 oz
(with dry batteries) |
Approx. 360 g/12.7 oz |
| Approx. 550 g/19.4 oz (Apex Locator Module + HF Module) |
Power Rating/ Power
Consumption |
Solo operation:
DC 6 V (alkaline dry batteries [AA size], Qty: 4)
Connected with HF Module:
DC 9.6 V (Ni-MH battery) |
DC9.6V (nickel-metal hydride
rechargeable battery) |
AC Adapter
Input: AC 100 V to 240 V, 50 Hz to 60 H
Output: DC15V |
| Features |
Apex locator, Customizable working length
determination, Adjustable volume,
Auto-calibration |
Optional HF (high-frequency conduction)
module, 4 output modes including
electrocautery mode, Portable style |

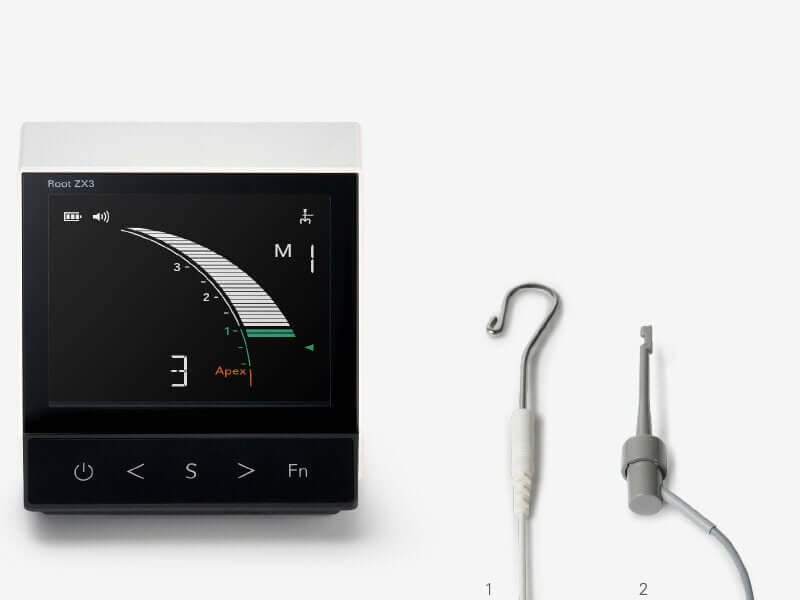

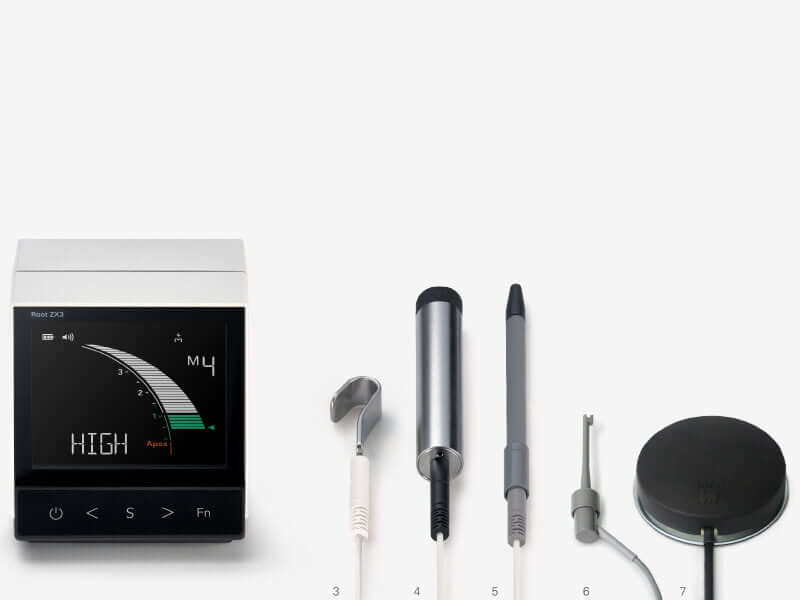

| Components |
5 × Contrary Electrodes
3 × File Holders
1 × Probe Cord
4 × Alkaline Dry Batteries (AA size) |
3 × Wide Contrary Electrodes, 1 × Grip
1 × Foot Switch, 1 × Cap
1 × HF Probe Cord
1 × HF Relay Cord
1 × AC Adapter
1 × Battery Pack (nickel-metal hydride rechargeable battery)*
1 × Electrode Pen
3 × Electrode Holder
2 × Electrode C #10
2 × Electrode S #10L25
2 × Cutting Electrode No.1
*Built-in
|
| Electrode Options |
| a. Electrode C #10 (2 pcs.) |
| b. Electrode C #25 (2 pcs.) |
| c. Cutting Electrode No. 1 (2 pcs.) |
| d. Electrode S #10L25 (2 pcs.) |
| e. Electrode S #25L25 (2 pcs.) |
Configuration:
Root ZX3 Apex Locator Accessories/Replacement Parts
TRZX/RZX Mini/RZX3 Probe Cord, 1650mm (Order no. 248449422)
Tri Auto ZX / Root ZX Contrary Electrodes, 5/pkg (Order no. 24107043)
Tri Auto ZX / Root ZX File Holders, gray, 3/pkg (Order no. 244001981)
Root ZX Long File Holder, 1/pkg (Order no. 248447047)
Root ZX3 HF Module Accessories/Replacement Parts
HF Probe Cord (Order no. 244000795)
HF Relay Cord (Order no. 244000796)
HF Foot Switch (Order no. 244000797)
AC-Adapter for HF Charger with Multi-Region Connectors (Order no. 244003777)
Battery Pack (Order no. 244000799)
Grip (Order no. 244000800)
Grip Cap (Order no. 244000801)
Wide Contrary Electrode (Order no. 244000802)
Electrode Holder (Order no. 244000803)
Electrode S #10L25, 2/pkg (Order no. 244000804)
Electrode S #25L25, 2/pkg (Order no. 244000805)
Electrode S #40L25, 2/pkg (Order no. 244000806)
Electrode Pen (Order no. 244000807)
Electrode C #10, 2/pkg (Order no. 244000808)
Electrode C #25, 2/pkg (Order no. 244000809)
Cutting Electrode No. 1, 2/pkg (Order no. 244000811)
