Ultrasonic Cavitation Test, 30 Vials/Bx

Description

CDWUZ-30/Designed for ultrasonic cleaning processes routine control and monitoring ultrasonic cavitation effectiveness of ultrasonic washing machines operating at frequencies equal to or greater than 35 kHz, at temperatures ranging from 18 °C to 70 °C.

Characteristics

  • 2 ml clear glass vial: 31.0 mm high x 11.0 mm external diameter, 8.0 mm neck diameter. Wall thickness: 0.5 mm.-Brown/Red rubber septum: 8.0 x 1.0 mm.
  • Aluminum top cap: 5.5 mm high x 11.7 mm diameter.
  • Wall thickness: 0.3 mm.
  • Ceramic cylinders: 2.5 mm high and 2.5 mm diameter.
  • Blue clear reactive solution: 1.5 ml.
  • Allows detection of deficiencies in the cavitation performance of the ultrasonic washing machine. A self-adhesive Record Card accompanies each vial where data about the ultrasonic washing control process can be recorded.
  • Challenge level: high.

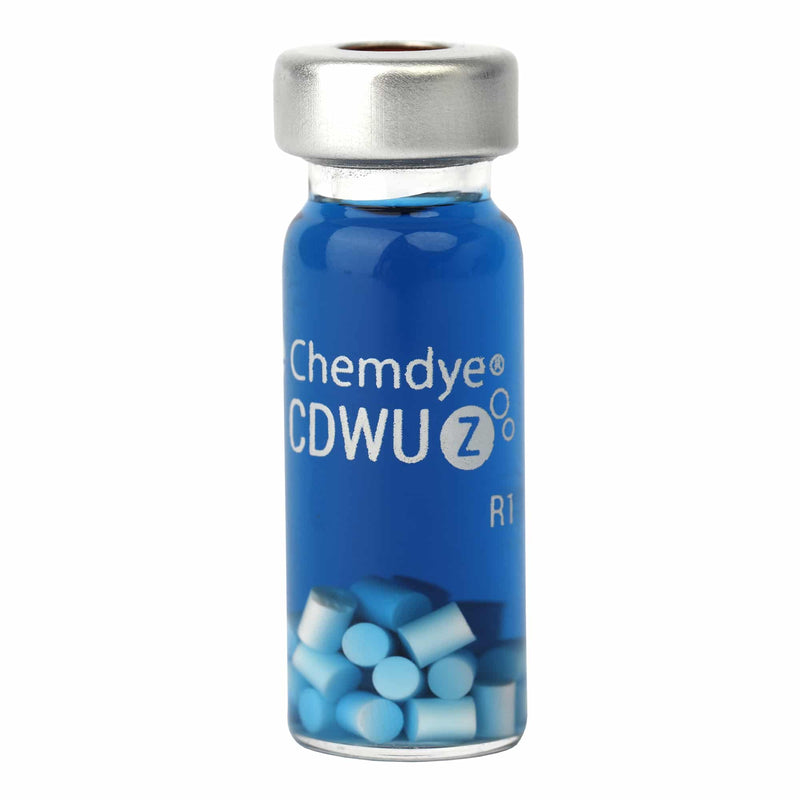

  • Initial Color: blue.

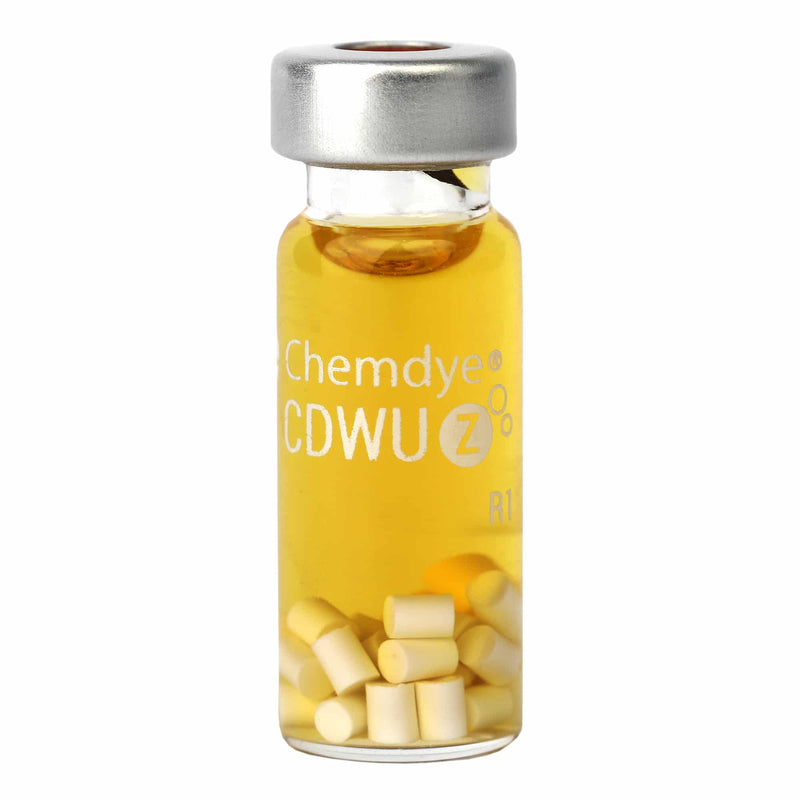

  • Result: yellow transparent solution.

Instructions For Use:

Ultrasonic wash ers should be checked at least once per week and the results should be recorded. There are two types of tests (see figure) and CDWU-Z indicator can be used in both:

-Periodic functional test: for initial set-up of the washing machine, and at regular intervals of three months or after a repair. The purpose of this test is to verify the uniform distribution of the cavitation process in the washer tank.

-Test routine: is performed weekly or daily, to verify that the cavitation works correctly. This test allows detecting a possible failure in the performance of the ultrasonic washing machine.

Specifications:

  • Process: Cleaning and thermodisinfection
  • Regulations: ISO 13485:2016 / NS-EN ISO 13485:2016
Product form

CDWUZ-30/Designed for ultrasonic cleaning processes routine control and monitoring ultrasonic cavitation effectiveness of ultrasonic washing machines operating at frequencies equal... Read more

Free pickup in our shop(s)

SKU: CDWUZ-30

$160.99 $120.99 Excl. VAT

    Shipping information

    Order processing time:

    1-2 business days for order to process and shipped.

    Delivery carriers:

    UPS, FedEx and USPS. Tracking details will be provided to the customer via email.

    Returns:


    SurgiMac brand Products returns - If you are unsatisfied with your SurgiMac order, we offer a no risk return policy. Within 30 days of receipt, you may return your new and unused product in its resalable condition for a full refund minus the cost of the shipping label. A restocking fee may apply. For customized items, a refund may be issued if there was an error on our end. Unfortunately, all sales of infection control products are final and not eligible for a refund. Other brands - Brands other than SurgiMac, we will provide credit after we receive credit from the manufacturer. Our representative will serve as your advocate to resolve any issues quickly and fairly. If the manufacturer agrees that the product needs to be returned or replaced, we will provide the necessary installation services at no extra cost. Any manufacturer’s restocking fee will be your responsibility. Instructions: Inspect your order as soon as it arrives. To arrange a return, have your order number ready and reach out to us via live chat or email (info@surgimac.com). We'll get back to you within one business day with the next steps for obtaining a return authorization.

    Ask a question

    Description

    CDWUZ-30/Designed for ultrasonic cleaning processes routine control and monitoring ultrasonic cavitation effectiveness of ultrasonic washing machines operating at frequencies equal to or greater than 35 kHz, at temperatures ranging from 18 °C to 70 °C.

    Characteristics

    • 2 ml clear glass vial: 31.0 mm high x 11.0 mm external diameter, 8.0 mm neck diameter. Wall thickness: 0.5 mm.-Brown/Red rubber septum: 8.0 x 1.0 mm.
    • Aluminum top cap: 5.5 mm high x 11.7 mm diameter.
    • Wall thickness: 0.3 mm.
    • Ceramic cylinders: 2.5 mm high and 2.5 mm diameter.
    • Blue clear reactive solution: 1.5 ml.
    • Allows detection of deficiencies in the cavitation performance of the ultrasonic washing machine. A self-adhesive Record Card accompanies each vial where data about the ultrasonic washing control process can be recorded.
    • Challenge level: high.
    • Initial Color: blue.
    • Result: yellow transparent solution.

    Instructions For Use:

    Ultrasonic wash ers should be checked at least once per week and the results should be recorded. There are two types of tests (see figure) and CDWU-Z indicator can be used in both:

    -Periodic functional test: for initial set-up of the washing machine, and at regular intervals of three months or after a repair. The purpose of this test is to verify the uniform distribution of the cavitation process in the washer tank.

    -Test routine: is performed weekly or daily, to verify that the cavitation works correctly. This test allows detecting a possible failure in the performance of the ultrasonic washing machine.

    Specifications:

    • Process: Cleaning and thermodisinfection
    • Regulations: ISO 13485:2016 / NS-EN ISO 13485:2016
